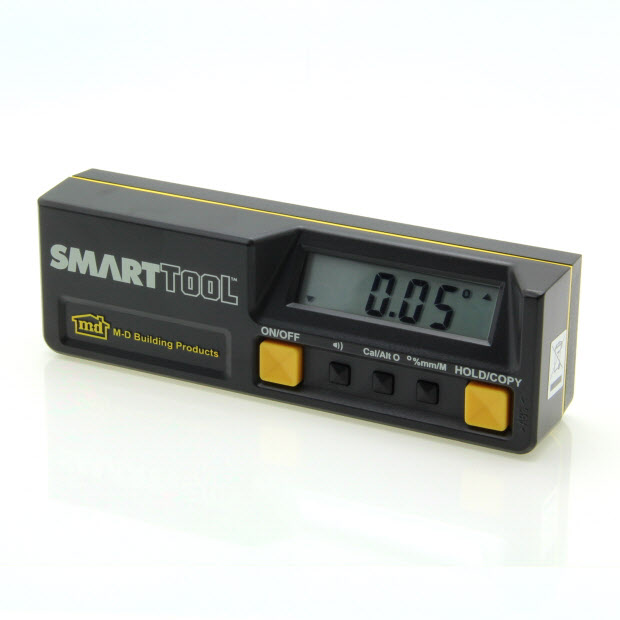

STM – Smart Tool Digitial Inclinometer Module, 360°
Smart Tool Digitial Inclinometer Module, 360°.
360° measurement range, displays to 0.05° @ 0° and 90°, 0.1° all other angles.
Switchable reading between degrees, % slope and pitch (rise over run) in mm/m.
Switchable beeper sounds when SmartTool is level.
Tough durable construction suitable for use on site
360° measurement range, displays to 0.05° @ 0° and 90°, 0.1° all other angles.
Switchable reading between degrees, % slope and pitch (rise over run) in mm/m.
Switchable beeper sounds when SmartTool is level.
Tough durable construction suitable for use on site
Τιμή προ ΦΠΑ : 149,19 €
Τιμή με ΦΠΑ : 185,00 €
STM – Smart Tool Digitial Inclinometer Module, 360°
Features
- 360° measurement range, displays to 0.05° @ 0° and 90°, 0.1° all other angles
- Switchable reading between degrees, % slope and pitch (rise over run) in mm/m
- Switchable beeper sounds when SmartTool is level.
- Tough durable construction suitable for use on site
Applications
- Measuring or setting the pitch of drainage pipes
- Setting or checking the angle of disabled access ramps
- Setting or checking the grading of ground or roads for drainage
| Parameter | Value | Unit |
|---|---|---|
| Number of Axis | 1 | - |
| Range | 360 | ° |
| Resolution | 0.05 @ 0° & 90°, 0.1 all othe angles | ° |
| Accuracy at 20°C | ±0.05 Level, ±0.05 Plumb, ±0.2 other | ° |
| Display Type | LCD | - |
| Output Format | - | - |
| Power Source | PP3 (9V) Battery | - |
| Frequency Response | 1 | Hz |
| Technology | Liquid filled capacitive | - |
